Special High Frequency Welding Machine For Automobile Ventilation Bag

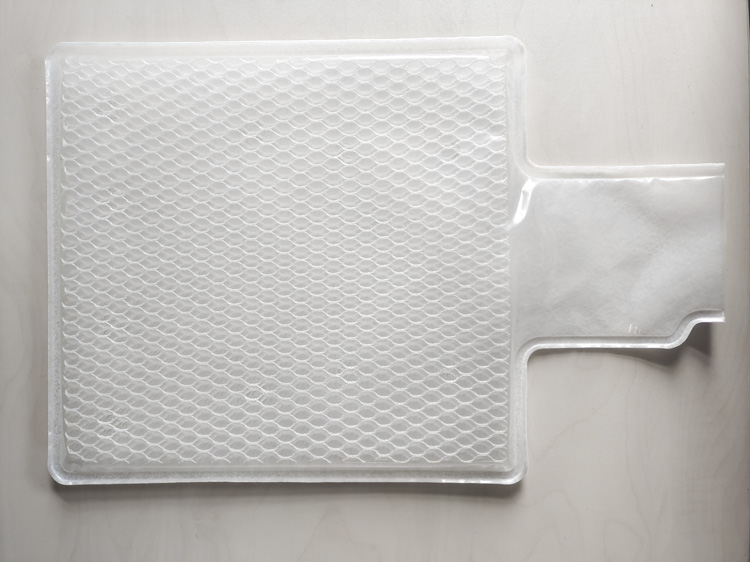

It is suitable for the production of various types of car seat back ventilation bags, TPU/PU/ non-woven fabric/sandwich mesh fabric and other materials. Specially designed for the production of automobile ventilation bags, strong pertinence, strong practicality, high production efficiency.

Message Automotive.pdf

Equipment Introduction

Applied Range

Equipment Features

1 Left and right sliding table design, automatic entry and exit, both sides can be placed material mold, high production efficiency

2 18-40 tons of pressurized synchronous fusing, welding cutting at the same time, no manual trimming

3 PLC electronic touch screen, hundreds of production parameters stored at will

4 With automatic feeding function, automatic punching function, automatic welding function, automatic cutting function

5 Automatic frequency tracking, automatic current compensation, upper and lower die head heating optional

6 Imported electronic tube, high frequency current output is stable

Technical Parameters

Air PressureCategory	Semi-Automatic	Semi-Automatic	Fully Automatic
High Frequency Power	8kw	15kw	15kw
Upper Pressure PlateSize	600*400mm	600*800mm	700300200mm
Working Table Size	700*540mm	800*1000mm	/
Production Efficiency	8-15s/piece	/	8-15s/piece
Pressure Mode	Booster Cylinder	/	Booster Cylinder
Boundary Dimension	230015002250mm	230015002250mm	650025002500mm
